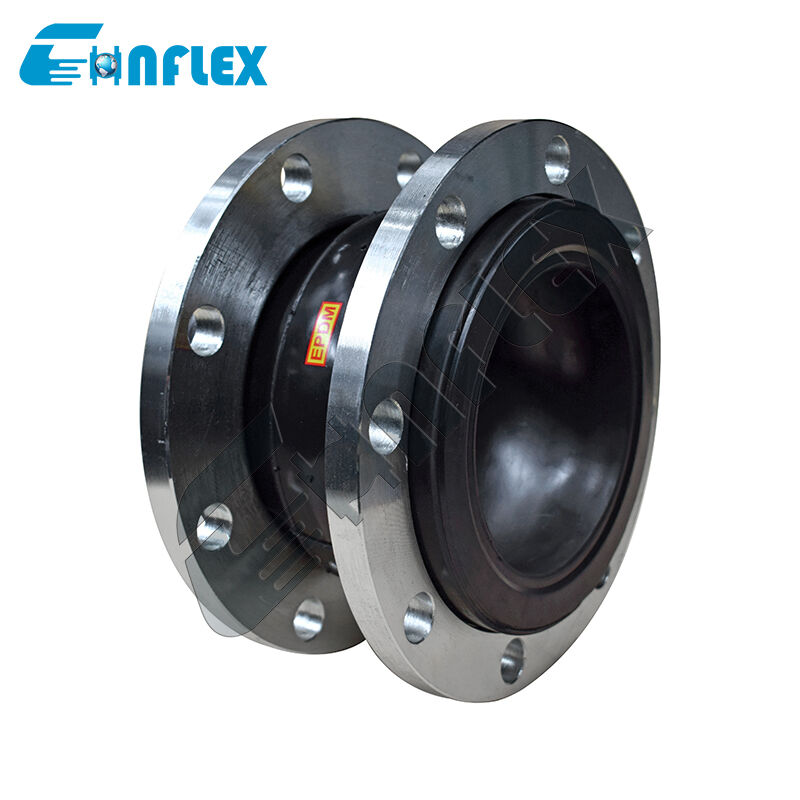

Q1: Can this expansion joint compensate for misalignment in my piping layout?
Yes, it is specifically designed to handle lateral, angular, and axial offsets. However, it is important to ensure the misalignment does not exceed the maximum rated limits of the bellows to prevent premature wear on the rubber walls.
Q2: What is the maximum pressure rating for this flanged connector?
Standard units typically handle PN10 or PN16 (1.0 to 1.6 MPa), but the exact burst pressure depends on the reinforcement layers. For high-pressure environments, we provide specialized high-tensile models with multi-strand steel wire integration.
Q3: Is it possible to install this bellows in a vertical pipeline?
Absolutely. It can be installed both horizontally and vertically. For vertical installations, ensure the piping is properly supported above and below the joint so that the bellows itself does not bear the total weight of the fluid column.
Q4: How does the temperature of the medium affect the rubber's lifespan?
Higher temperatures naturally accelerate the aging of elastomers. While our EPDM units can withstand up to 115°C, continuous operation at peak temperature may reduce flexibility over time. We recommend choosing a material grade that exceeds your average operating temperature by at least 20%.
Q5: Why does the flange rotate freely on the rubber bellows?
This is a "Floating Flange" design. It is intentional to allow for easy alignment with the bolt holes of the fixed pipeline flanges, significantly reducing installation time and preventing the rubber from twisting during the tightening process.
